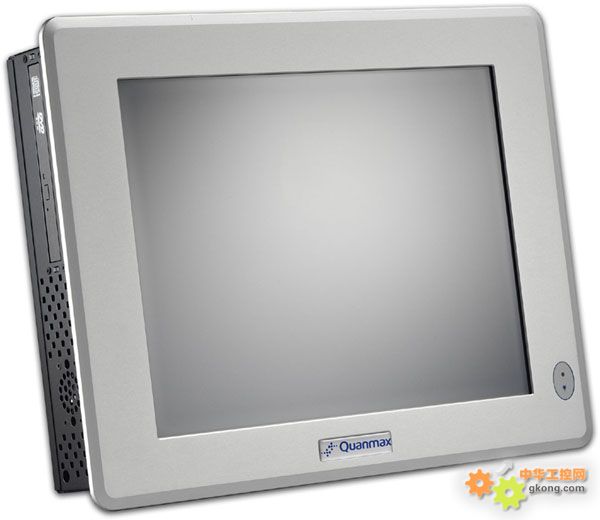

15"/17" Touch Panel PC with Intel® Core 2 Duo+Intel® GM45 + ICH9-M
主要特性
· 15”/ 17" TFT LCD Display with Resistive 5-wire TouchScreen
· CPU Support
- Intel® Core™2 Duo Processor T9400 (6M Cache, 2.53 GHz, 1066 MHz FSB)
- Intel® Core™2 Duo Processor P8400 (3M Cache, 2.26 GHz, 1066 MHz FSB)
- Intel® Celeron® Processor 575 (1M Cache, 2.00 GHz, 667 MHz FSB)
· Intel® Graphics Media Accelerator 4500MHD supports
· IP65 approved front bezel
· 1x GbE, 2x COMs, 2x USB ports, Digital I/Os
· DVI-I, HDMI, HD Audio
產品介紹
The KPC-1590/1790 Panel PCs is supporting the latest Intel® 45nm Core 2 Duo processor with the high integration of the Intel® GM45/ ICH9M chipset. Featured are DDR3 SODIMM up to 2GB, Intel® GMA 4500MHD supports DirectX 10 and Shader Model 4.0. Storage includes a 2.5" SATA hard drive or a solid-state drive (SSD), and slim optical drive. Supported interfaces include a GbE LAN, HD audio, 2x serial ports, USB 2.0 ports, DVI-I and HDMI, thus easily meeting a broad range of customer requirements. The KPC series provide a compact, high performance human-machine interface, with optimal shock, vibration and temperature resistance for tough industrial demands.
