Intel® Atom™ N270 嵌入式無風扇工控機

產品亮點

• 板載Intel® Atom N270 1.6GHz
• Intel® 945GSE + ICH7M
• VGA / 2個千兆網口/ 4*USB / 音頻/ 3*COM
• +12V DC Input ATX電源
• 支持DDRII 667/800 MHz 內存
• 支持2.5″SATA2 硬盤

處理器                      Intel® Atom™ N270 (1.6GHz) @ TPD 2.5W

芯片組                       Intel® 945GSE + ICH7M

內存                           支持DDRII 667/800 MHz 內存, 最高內存可達 2G

硬盤                           S支持2.5″SATA2 硬盤

顯卡                           Intel® Graphic Media Accelerator 950

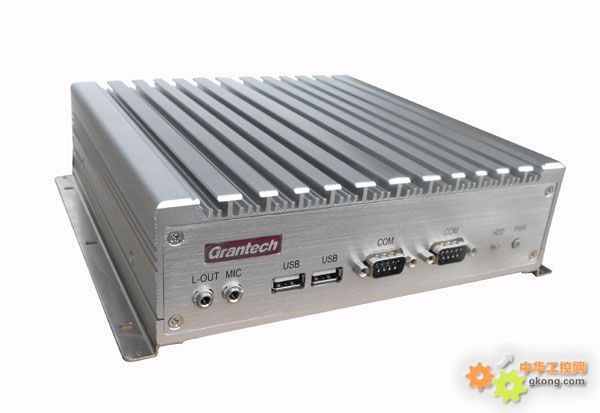

前面板

                           1電源開關LED燈指示

                           1硬盤狀態指示燈

                           2個COM口

                           2個USB口

                           1組Line-In/Line-Out/MIC-In

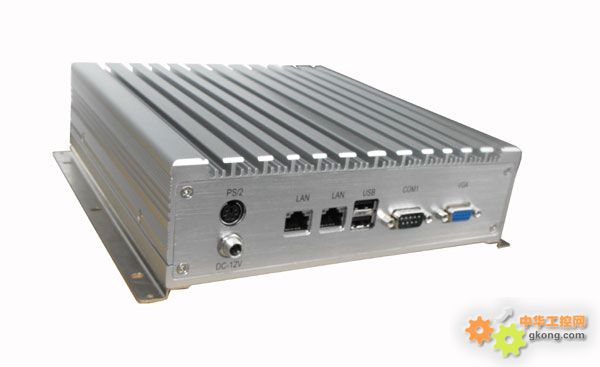

I/O 端口

                           1*DC12V電源輸入

                           1*VGA

                           2*千兆網口

                           2*USB

                           1*COM

                           1*PS/2

擴展                          1個Mini PCI－E插槽

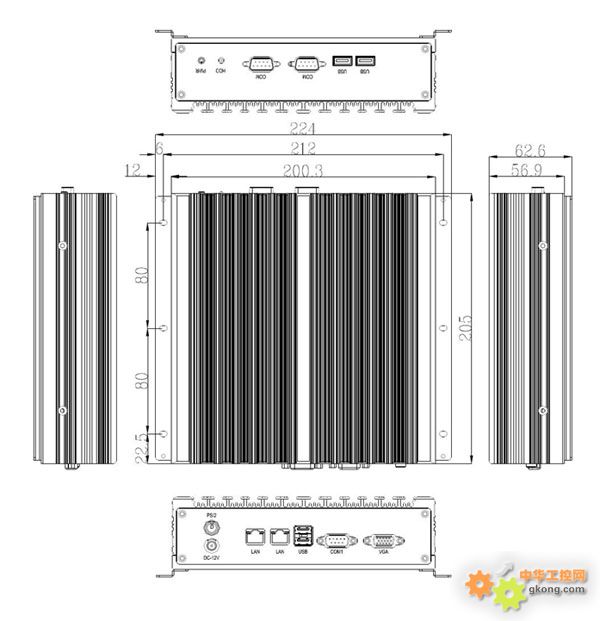

規格                           W:200mm D:205mm H:56.9mm

材質                          鋁

電源

                           直流電源適配器(60W)

                           輸入 : AC100~240V 1.5A 50~60MHz

                           輸出 : DC 12V 5A(MAX)

重量                      3.25KG

適用環境                溫度 0~50°C

                           相對濕度 10~95% @40°C,無冷凝

訂購信息

Model                        UFO6355H-833-18
SPEC                         Intel® Atom™ N270 Embedded Fanless Industrial PC
