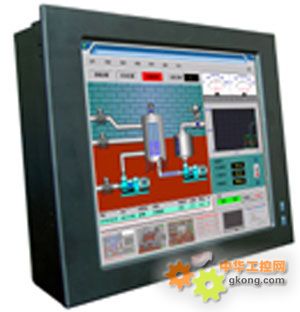

Low Power and Touch Screen Ready 17” Panel PC
產品亮點
· Intel Celeron-M ULV 1.0GHz Onboard
· Small Size, Low power consumption and economical solution
· Compact size with high performance
· High Speed Gigabit LAN Controller
· High precision touch screen
· Onboard IDE interface, Type II CF Slot
· 24V DC Power Support
特點詳情
>> Systems
CPU Type Intel Celeron-M ULV 1.0GHz Onboard
Chipset Intel 855GME+ICH4
DRAM 1 x 200-pin SO-DIMM, Support DDR333 max up to 1GB
Front Bezel Aluminum
IP65/NEMA4 Yes
Power Supply DC 24V 60W Power Supply / AC 100~240V (optional power adaptor)
Dimension 450×350×107
Weight 11.5Kg
Certificate CE/FCC
>> I/O Ports
IDE Interface 1 × 2.5” HDD, 1 × IDE CF Slot Onboard
Audio ALC202A AC’97 Codec, Interface: Line In / Line Out / MIC in
Serial Port 4 × COMs, Interface: COM1 for RS232, COM2 for RS232/422/485, with D-Sub
COM3 COM4 for RS232 onboard
Parallel 1 × Parallel Port (SPP/EPP/ECP)
KB/Mouse 2 × Switchable for Keyboard and Mouse
LAN 1 × Gigabit LAN (10M/100M/1000M)
USB 2 × USB 2.0 ports on rear panel, 2 × USB2.0 ports onboard
Brightness Control VR on rear Panel
>> Display
LCD 17” SXGA TFT LCD
Typical White 300cd/㎡
Contrast Ratio 500:1
Viewing Angle 70/70/70/60 (L/R/U/D)
Touch Screen 5W Analog resistive (USB interface)
>> Environment
Temperature 0°~40°C
Storage temperature -20°~65°C
Humidity Operation Humidity 20~90%, Storage Humidity 20~95%
訂購信息
|
Order Number |
Description |
|
UFP6317 |
Panel PC with 17”LCD, Intel Celeron-M ULV 1.0GHz CPU onboard, resistive Touch Screen, 60W DC Power supply |
