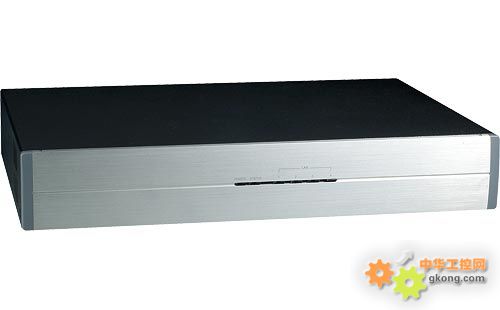

Desktop Intel® Atom™ D510 Dual Core/D410 Single Core 1.66GHz 處理器，1U上架式整機，帶6PCIe千兆網絡接口
產品亮點
機箱：DTX-105A
主板：NSB1110
CPU： INTEL ATOM D510
內存：1G DDR2
硬盤：320G SATA
電源：200W電源(可選配4個千兆網口)
6個intel 82583千兆網口（支持BY PASS功能）,1個VGA口，1個CONSOLE口，2個USB口，1個板載CF卡卡槽，1個PCI插槽，1個MINI-PCI插槽。
特點詳情
1U機架式網絡安全平臺，整機尺寸426mmx 238mm x 44mm，CPU采用凌動D510 1.66G，整機提供1個PCI擴展插槽。機器支持網絡BYPASS功能，網絡喚醒功能。
|
Specifications |
|
主板 |
- NSB 1110
- Support Intel® Atom™ D510 Dual Core/D410 Single Core 1.66GHz Processors
- Intel® ICH8M Chipset
|
|
內存 |
- 1 x 240-pin DDR2 667/800 DIMM Socket, up to 2GB Non-ECC DDR2 SDRAM
|
|
網絡特點 |
- LAN Chip: Intel® 82583V
- Support 10/100/1000 link speed
- LAN Bypass: 2 pairs
|
|
擴展 |
|
|
I/O接口-前面板 |
- Support 2 x 16 Characters LCD Module, PIO interface (Optional)
- Power status/HDD status/LAN status/Bypass status LED
- 2 x USB 2.0 Ports
- 1 x RJ45 type Console Port
- 1 x software button
- 6 x Copper LAN Ports
- PCI Expansion (Optional)
|
|
I/O接口-后面板 |
- I/O Interface-Rear
- 2 x USB 2.0 Ports
- 1 x VGA Port
|
|
設置 |
- 1 x CompactFlash Socket (Optional)
- 1 x Intelnal 3.5" HDD bay
- 1 x SATA-DOM device space
|
|
電源輸入 |
|
|
尺寸規格 |
- Chassis Dimension: 426mm x 238mm x 44mm
- Carton Dimension: 556mm x 384mm x 185 mm
|
|
重量 |
- Without Packing: 5.6kg
- With Packing: 8kg
|
|
認證 |
- CE approval
- FCC Class A
- UL
|
訂購信息
· NSA 1110 (P/N: 10S00111000X0)Intel® Atom™ D410 Single Core 1.66GHz Processors, 1 DDR2 memory slot,6 Gigabit LAN ports with two pairs bypass, CompactFlash Socket, VGA, USB port, One Mini-PCI Slot, Two PCI expansion slot
· NSA 1110A (P/N: 10S00111001X0)Intel® Atom™ D510 Dual Core 1.66GHz Processors, 1 DDR2 memory slot,6 Gigabit LAN ports with two pairs bypass, CompactFlash Socket, VGA, USB port, One Mini-PCI Slot, Two PCI expansion slot
· NSA 1110-C4 (P/N: 10S00111002X0)Intel® Atom™ D410 Single Core 1.66GHz Processors, 1 DDR2 memory slot,4 Gigabit LAN ports with two pairs bypass, CompactFlash Socket, VGA, USB port, One Mini-PCI Slot, Two PCI expansion slot
· NSA 1110A-C4 (P/N: 10S00111003X0)Intel® Atom™ D510 Dual Core 1.66GHz Processors, 1 DDR2 memory slot,4 Gigabit LAN ports with two pairs bypass, CompactFlash Socket, VGA, USB port, One Mini-PCI Slot, Two PCI expansion slot
